The difference between fully automatic bottle blowing machine and semi-automatic bottle blowing machine
Release time:
2024-04-09
A bottle blowing machine is a device that uses a blow molding process to make plastic particles into hollow containers. There are two common types at present. One is a semi-automatic bottle blowing machine that uses PP and PE to form a hollow extrusion blow machine in one step, and the other is a fully automatic bottle blowing machine that uses PET, PC or PP to form two steps. The two-step bottle blowing machine is widely used in carbonated beverage bottles, mineral water bottles, cosmetic bottles, edible oil bottles, pesticide bottles, large-caliber bottles, high-temperature resistant bottles and other packaging containers made of crystalline plastics such as PET and PP. For many newcomers to the plastic bottle industry, there are many things to understand and learn before purchasing, and they need to purchase according to their own needs. The more expensive the bottle blowing machine is, the better it is, but it may not be suitable for you. Since there are many types of bottle blowing machines, they are generally divided into semi-automatic bottle blowing machines, hand-inserted automatic bottle blowing machines, and fully automatic bottle blowing machines.
A bottle blowing machine is a device that uses a blow molding process to make plastic particles into hollow containers. There are two common types at present. One is a semi-automatic bottle blowing machine that uses PP and PE to form a hollow extrusion blow machine in one step, and the other is a fully automatic bottle blowing machine that uses PET, PC or PP to form two steps. The two-step bottle blowing machine is widely used in carbonated beverage bottles, mineral water bottles, cosmetic bottles, edible oil bottles, pesticide bottles, large-caliber bottles, high-temperature resistant bottles and other packaging containers made of crystalline plastics such as PET and PP. For many newcomers to the plastic bottle industry, there are many things to understand and learn before purchasing, and they need to purchase according to their own needs. The more expensive the bottle blowing machine is, the better it is, but it may not be suitable for you. Since there are many types of bottle blowing machines, they are generally divided into semi-automatic bottle blowing machines, hand-inserted automatic bottle blowing machines, and fully automatic bottle blowing machines.
Semi-automatic bottle blowing machine features:
1. Can blow 0.1-5L PET bottles (one out of two), 5L-20L (single cavity)
2. Using a two-cavity mold to blow a 500 ml bottle, the output can reach 2,000 bottles per hour.
3. Advanced PLC control system, time control can be accurate to 0.01 seconds
4. Special air storage installation
5. Infrared lamps are used for heating, which have strong penetrating power. The preform rotates to heat, and the orbit revolves, so the heating is even, fast and reliable.
6. Different heating lamps are equipped with independent temperature control devices to ensure ideal heating effect for the preforms
7. The direction of the heating lamp can be adjusted according to different preforms
8. Only one person is needed to operate, no special training is required
9. Easy installation and startup
10. The scrap rate is less than 0.1%

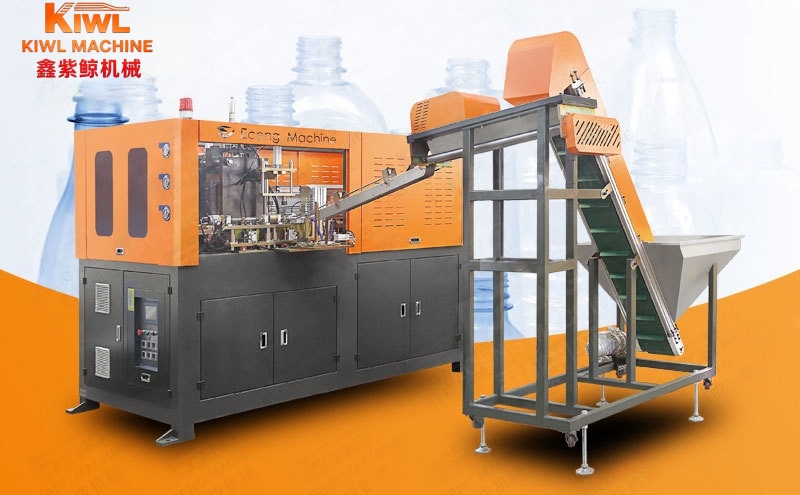

The fully automatic bottle blowing machine does not require manual operation. The output is 2000-8000 bottles per hour. Features:
A. Adopt advanced microcomputer control system with stable performance;
B. The conveyor automatically delivers the blanks;
C. Infrared lamps are used for heating, which have strong penetrating power. The preforms rotate to heat, and the orbits revolve, so the heating is even, fast and reliable.
D. The width and height of the lamps and reflective plates in the heating zone can be adjusted to suit the heating of preforms of different structures, and there is an automatic temperature exhaust device to ensure the constant temperature of the drying tunnel;
E. Each mechanical action has a safety self-locking device. When a certain process fails, the program will automatically switch to a safe state;
F. Each action is driven by an oil pump, which has the advantages of no pollution and low noise;
G. The air circuit design divides the action and blowing into three parts to meet the needs of different air pressures for blowing and action;
H. High pressure and double crank arm connecting rod clamping are adopted, with strong clamping force;
I. There are two operation methods: manual and automatic;
J. Safe and reliable. Unique valve position design makes the gas path clear to you;
K. The production process is fully automated, with the advantages of low investment, high efficiency, convenient operation, simple maintenance and safety.
L. The bottle is free from contamination
M. Cooling system achieves ideal cooling effect
N. Device, easy to start
O. Bottle scrap rate is less than 0.1%.
